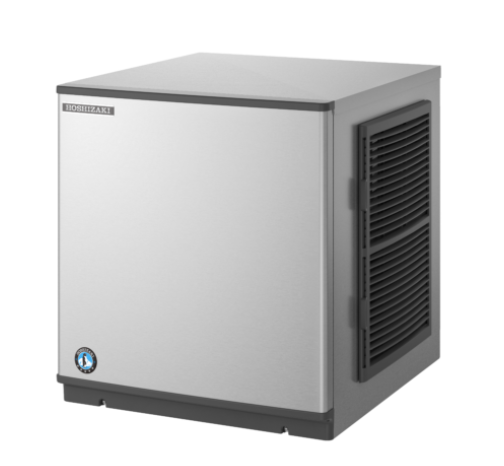

Hoshizaki Crescent Ice Maker, 175kg [KMD-201AB (SS)] (Order in item)

LEADING THE FUTURE OF ICE PRODUCTION

This modular ice maker produces clear, crescent shaped ice that is extremely versatile. It includes a double-sided stainless steel evaporator, which requires fewer cycles to produce a full bin of ice, thereby reducing energy consumption.

Product features

▪ Individually shaped crescent ice.
▪ Protected by HoshiGuard Antimicrobial Agent.
▪ CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
▪ EverCheck Control board with audible alarm and diagnostic features, designed to assist services technicians in diagnosing problems.
▪ Durable stainless-steel exterior.
▪ Easily removable & cleanable air filters on front panel.
▪ Ice storage bin, top kit and water filter sold separately.
▪ Production Capacity per 24hours: Approx. 200kg @ 10°C Air temp; 10°C Water, Approx. 175kg @ 21°C Air temp; 15°C Water, Approx. 140kg @ 32°C Air temp; 21°C Water
▪ Freeze Cycle Time: Approx. 30.5 Min (At. 21°C Air ; 15°C Water)
▪ Ice Production / cycle: Approx. 3.7kg / 416pcs
▪ Dimensions: 560mm (W) x 625mm (D) x 610mm (H)
▪ Cooling: Air
▪ Weight Net/Gross (kg): 57/73
▪ Refrigeration System: Forced Air Circulation
▪ AC Supply Voltage: 1 PHASE 220-240V 50Hz
▪ Amperage: Running: 3.0A Starting: 25A
▪ Refrigerant Charge: R404A/520g
▪ Ambient Temp 7-40°C
▪ Water Supply Temp: 7-35°C
▪ Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
▪ Voltage Range: ±6%
